Normally $4,299.00

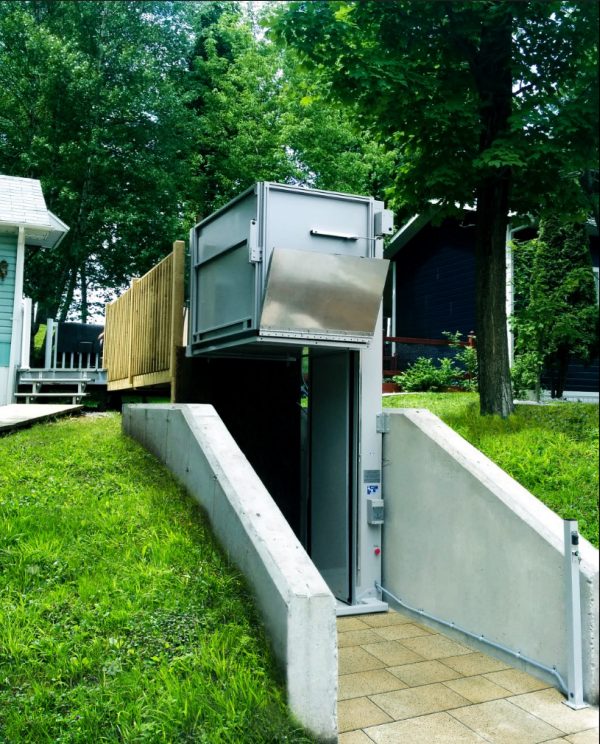

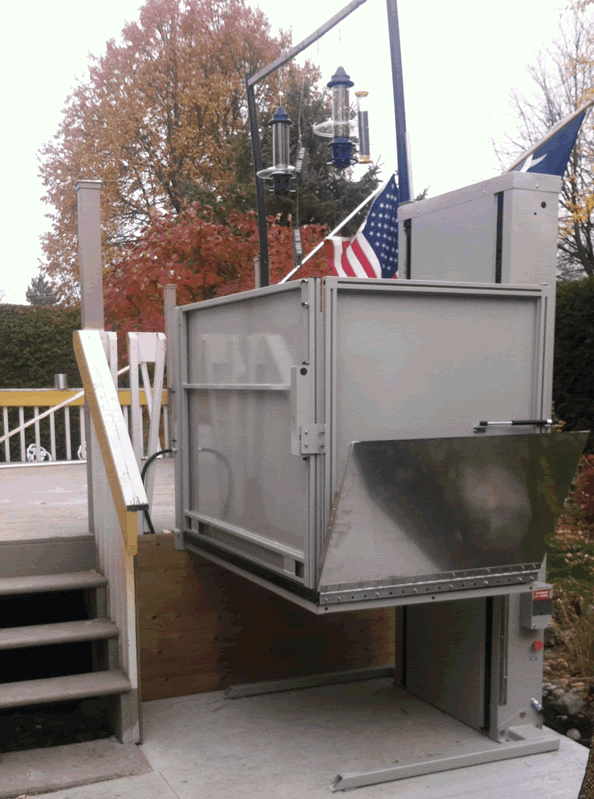

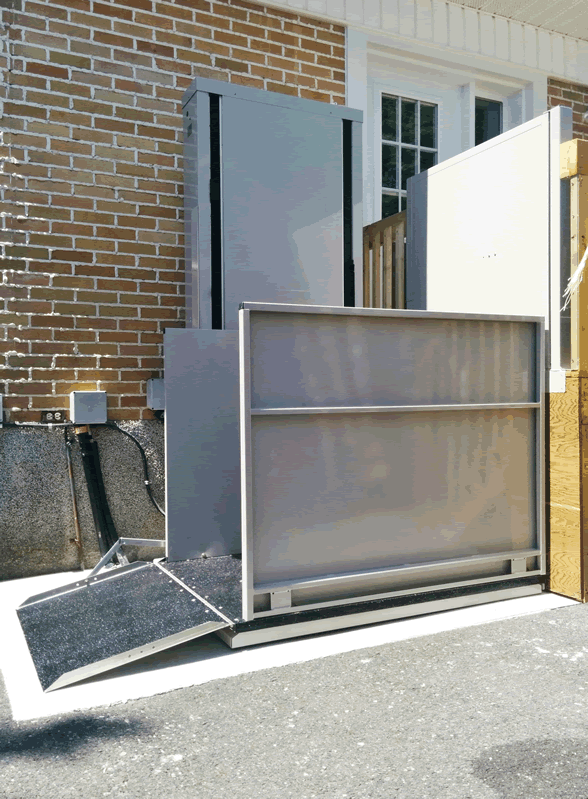

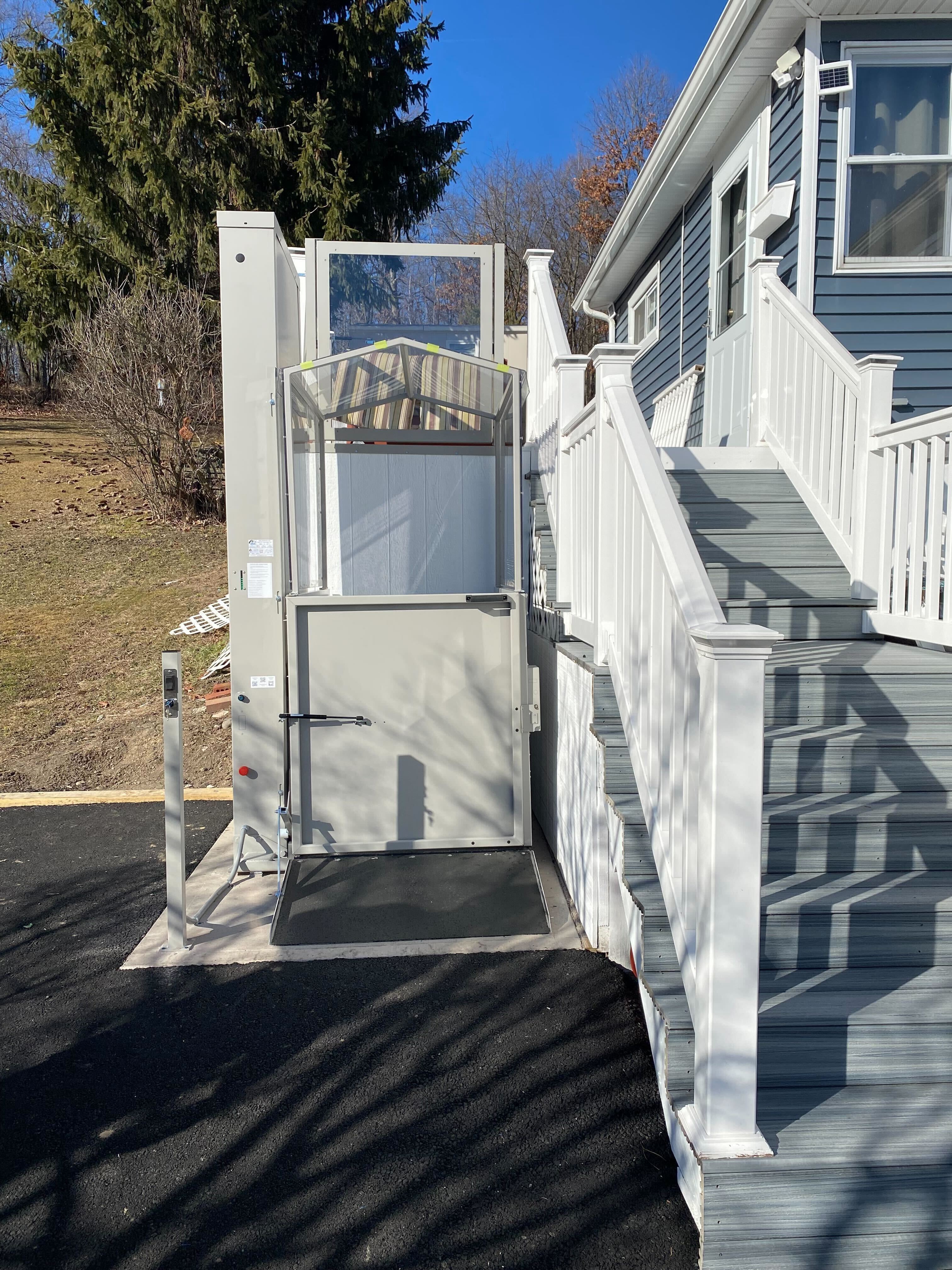

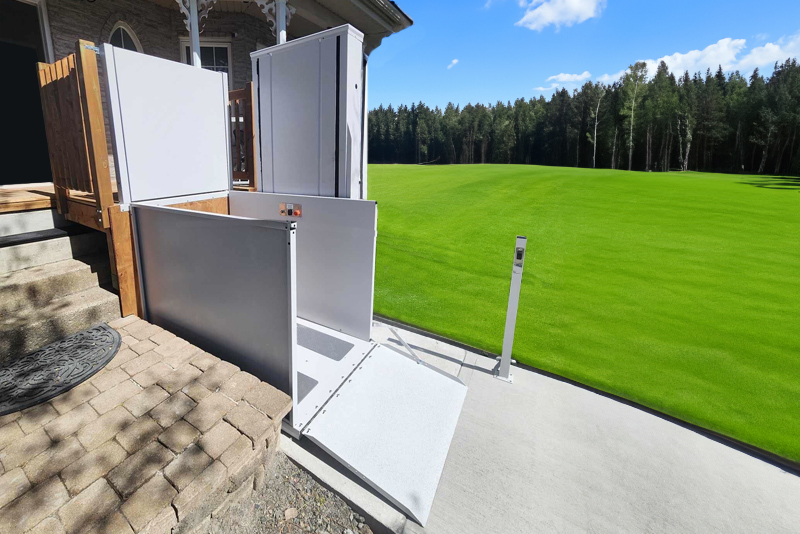

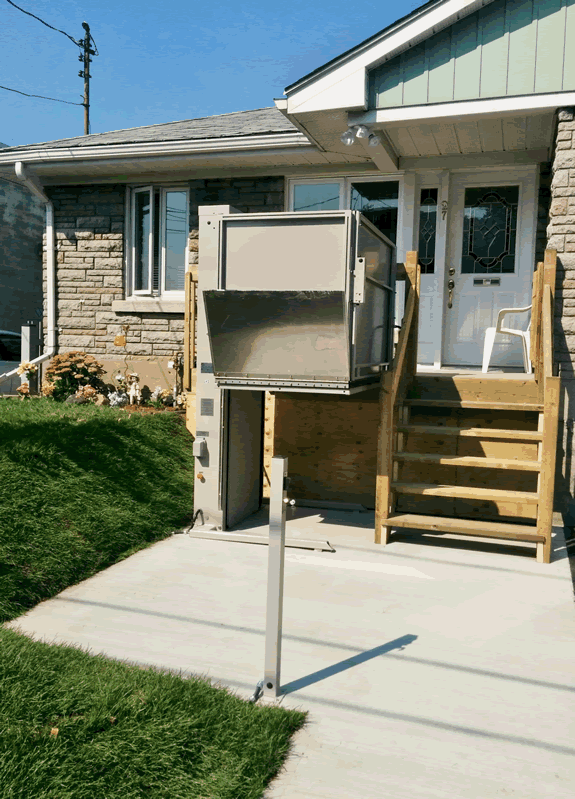

The AmeriGlide Hercules 750 Residential Vertical Lift is the ideal vertical platform lift for outdoor or indoor applications. Great for porches, decks, and garages too! The non-skid epoxy coated floor and galvanized steel panel is weather resistant, even in the harshest conditions.
A 750 pound weight capacity comes standard on the Hercules, but a 1000-pound capacity is available as an option. Great for lifting large wheelchairs and two people at one time.
The acme screw direct drive makes the Hercules the smoothest and quietest lift on the market. Being battery powered, the lift and its automatic self-lowering folding ramp (standard) will even work during a power outage.
Safety features include under platform obstruction detection, emergency stop switch, anti-skid floor surface, emergency alarm, and much more.
To learn more about the Hercules 750 Residential Vertical Lift, call and speak with our experienced VPL experts today.
If you need a fully enclosed Vertical Lift, see our AmeriGlide Hercules 750 Commercial Enclosed Vertical Platform Lift.
| Lifting Capacity | 750 lb |
| Standard Lift Height | 64" |
| Maximum Lift Height | 160" |
| Lift Speed (FPM) | 12 |
| Maximum Stops | 3 |
| Arrives Assembled | No |
| Drive System | Direct Drive ACME Screw |
| Battery Powered Option | Yes |
| Constant Pressure Platform Control | Yes |
| Alarm Button | Included |
| Platform Type | Non-skid (Epoxy crushed and recycled tires) |
| Platform Size | W 34"-36" x L 54"-60" |
| Optional Platform Sizes | Custom: W (31" to 42") x L (46" to 66") |
| Platform Configuration | Straight-Thru Access |
| Optional Platform Configurations | Same Side Entry-Exit, 90 Degree Adjacent Access |
| Grab Rail | Not included |
| Portable | Optional |
Options Available for the AmeriGlide - Hercules 750 Residential
- Residential Hercules DC 750 Includes
455 Keys $0.00
Rocker Switch $0.00
Audible Emergency Alarm $0.00
Pit Switch $0.00
AC Power Cord and Interlock Wiring Kit (Interlocks Not Included) $0.00
- Power Source
DC Battery Powered (2 x U1 Batteries Included) $0.00
AC Powered $0.00
- Number of Stops
Two Stop $0.00
Three Stop $1,219.00
- Lifting Height
44" Maximum Lift Height (tower 72") $544.00
64" Maximum Lift Height (tower 92") $0.00
78" Maximum Lift Height (tower 108") $955.00
98" Maximum Lift Height (tower 126") $1,512.00
115" Maximum Lift Height (tower 158") $2,909.00
130" Maximum Lift Heigth (tower 158") $4,300.00
160" Maximum Lift Height (tower 190") $4,996.00
- Select Tower Bracket Type
For Tower Heights: 44", 64", 78", 98" $0.00
No Bracket Desired (for 44", 64", 78", 98") $0.00
Triangle (for 44", 64", 78", 98") $273.00
Ground Bracket (for 44", 64", 78", 98") $325.00
For Tower Heights 115", 130", 160" (bracket included in unit price) $0.00
Triangle Bracket (for 115",130", 160") $0.00
Ground Bracket (for 115",130", 160") $0.00
- Color of Unit
Grey (standard) $0.00
Custom Color (Call to Verify Color Available) $999.00
Stainless Steel $6,927.00
- Fascia Panels
No Fascia Panels $0.00
Fascia Panels can be any height up to 98". Specify height in decimal feet below. $0.00
Galvanized Steel Fascia Panels (per foot) $35.00
3/16" Acrylic Lexan w/Aluminum Frame (per foot) $54.00
- Platform / Tower Configuration
Straight Thru Left Hand $0.00
90 Degree Left Hand $563.00
Straight Thru Right Hand $0.00
90 Degree Right Hand $563.00
Same Side Entry/Exit (For Hoistway Installs Only) $563.00
- Guard Panels / Cab
42" High Steel Guard Panels (Standard) $0.00
80" High Full Cab $3,984.00
- Platform Canopy for 42" Panels (Rather Than Full Cab)
No Canopy $0.00
Platform Canopy $790.00
- Wing Walls
No Wing Walls $0.00
64" Travel $929.00
78" Travel $1,028.00
98" Travel $1,126.00
115" Travel $1,223.00
130" Travel $1,317.00
160" Travel $1,415.00
New Option $0.00
New Option $0.00
- Platform Dimensions (Dimensions are All Clear)
34" x 54" $0.00
34" x 60" $0.00
36" x 54" $0.00
36" x 60" $598.00
Custom: W=30" to 42" by L=46" to 66" $598.00
- Platform Controls
40mm (1.57") Diameter Buttons on Platform $322.00
60mm (2.36") Diameter Buttons on Platform $342.00
Joystick $184.00
Additional Platform Controls (On Opposite Side) $526.76
Lighted Buttons for COP $130.00
- Lower Landing (Platform) Orientation
Note: If Selecting a Platform Gate It Must Be Hinged Same Side as Tower $0.00
Open on Left $0.00
Open on Right $0.00
- Lower Landing Entrance (Interlock Included with Door/Gate)
A Call/Send Control must be ordered for every Door or Gate Ordered $0.00
34" or 36" W x 42" H Platform Gate $847.00
38" to 42" W x 42" H Platform Gate $1,020.00
Door 80" H x 36" W Interior $1,046.00
Door 80" H x 36" W Exterior $1,785.00
Door 80" H x 36" W Fire Rated $1,477.00
Door 80" H x 36" W Exterior Polycarbonate $1,785.00
Door 80" H x 42" W Interior $1,766.00
Door 80" H x 42" W Exterior $2,504.94
Door 80" H x 42" W Fire Rated $2,197.00
Door 80" H x 42" W Exterior Polycarbonate $2,505.00
No Gate or Door (For Gates/Doors Provided by Others) $0.00
- Mid Landing Orientation (3 Stop Units Only)
Open on Left $0.00
Open on Right $0.00
- Mid Landing Entrance (3 Stop Units Only, Interlock Included)
A Call/Send Control must be ordered for every Door or Gate Ordered $0.00
Door 80" H x 36" W Interior $1,046.00
Door 80" H x 36" W Exterior $1,785.00
Door 80" H x 36" W Fire Rated $1,477.00
Door 80" H x 36" W Exterior Polycarbonate $1,785.00
Door 80" H x 42" W Interior $1,766.00
Door 80" H x 42" W Exterior $2,504.94
Door 80" H x 42" W Fire Rated $2,197.00
Door 80" H x 42" W Exterior Polycarbonate $2,505.00
Interlock is included with any Door Ordered $0.00
No Door (For Doors Provided by Others) $0.00
- Upper Landing Orientation
Open on Left $0.00
Open on Right $0.00
- Upper Landing Entrance (Interlock Included with Door/Gate)
A Call/Send Control must be ordered for every Door or Gate Ordered $0.00
34" or 36" W x 42" H Upper Landing Gate (includes Call/Send in frame) $825.00
38" to 42" W x 42 H Upper Landing Gate (includes Call/Send in frame) $1,175.00
Door 80" H x 36" W Interior $1,046.00
Door 80" H x 36" W Exterior $1,785.00
Door 80" H x 36" W Fire Rated $1,477.00
Door 80" H x 36" W Exterior Polycarbonate $1,785.00
Door 80" H x 42" W Interior $1,766.00
Door 80" H x 42" W Exterior $2,504.94
Door 80" H x 42" W Fire Rated $2,197.00
Door 80" H x 42" W Exterior Polycarbonate $2,505.00
No Gate or Door (For Gates/Doors Provided by Others) $0.00
- Polycarbonate Gate Option
If a gate is selected for Platform or Upper Landing, these options allow you to switch to a Polycarbonate panel $0.00
Polycarbonate Panel in Platform Gate (must have selected gate above) $258.00
Polycarbonate Panel in Upper Landing Gate (must have selected gate above) $258.00
- Interlocks (For Gates/Doors Provided by Others)
Interlock Only (For Gates/Doors Provided by Others) $282.00
- Call/Send Options
40mm (1.57") Diameter Buttons on Call Station $115.00
60mm (2.36") Diameter Buttons on Call Station $115.00
Anti-Tamper Commercial Buttons $142.00
Keyed Call/Send Post - Lower Landing $232.00
Keyed Call/Send Post - Mid Landing $232.00
Keyed Call/Send Post - Upper Landing $232.00
Keyed Call/Send Flush Mount - Lower Landing $232.00
Keyed Call/Send Flush Mount - Mid Landing $232.00
Keyed Call/Send Flush Mount - Upper Landing $232.00
Keyed Call/Send Surface Mount - Lower Landing $232.00
Keyed Call/Send Surface Mount - Mid Landing $232.00
Keyed Call/Send Surface Mount - Upper Landing $232.00
Keyed Call/Send In Gate's Frame - Upper Landing Only $232.00
Lighted Buttons for Call Station $95.00
Call/Send Control must be ordered for every Door or Gate Ordered $0.00
- Auto Openers and Closers
Auto Operator for Gate Qty. $860.00
Auto Operator for Door Qty. $1,099.00
Wireless Remotes for Auto Operators (2x) $136.00
Gas Spring Loaded Door Closer (Required for Doors Without Auto Operator) $96.63
- Other Options
Grab Bar $194.00
Platform Lights $194.00
Disconnect Switch $135.00
Designer Gate $257.00
Easy Access Lowering Mechanism $527.00
Folding Seat $450.00
Fixed Ramp for Bottom Landing $336.97
Custom Sized Folding Ramp (less than 24") $273.00
Additional Weather Protection Coating $550.00
Front Panel Brushes (Travel Track Protection) $85.00
GFI Outlet in Wing Wall $141.00
1000 lbs. Capacity $1,288.00
Handsfree Phone $550.00
All Wooden Crate $460.00
- State Required Inspections / Permits / Evaluations
Permit (Required in Kentucky) $87.50
Georgia Permit & Inspection Fees $250.00
Site Evaluation (Required for sites outside a 50 mile radius of Raleigh when Install Purchased) $150.00
- Installation (Within 200 miles of Raleigh)
Self-Install $0.00
Up to 64" Lift Height Installation $1,295.00
78" Lift Height Installation $1,650.00
Over 78" Lift Height Installation - Call for Price $0.00
- Delivery Options
Pick up at Local Freight Terminal $0.00
Site Shipping - Customer Provided Fork Lift OR Loading Dock on Site $0.00
Site Shipping - Liftgate Delivery (not available for 98" and taller models) $199.00
Site Shipping - Flatbed & Forklift Delivery (Available in Most Areas)(for 98" and taller models) $499.00
