Normally $7,999.00

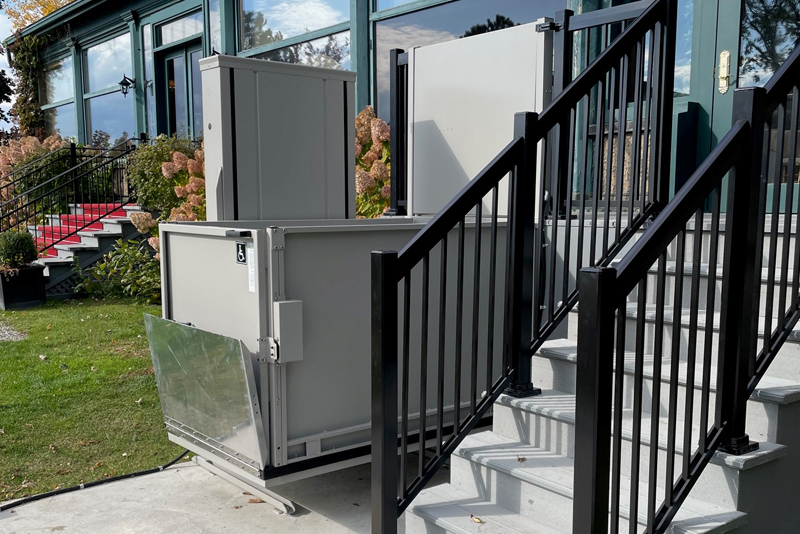

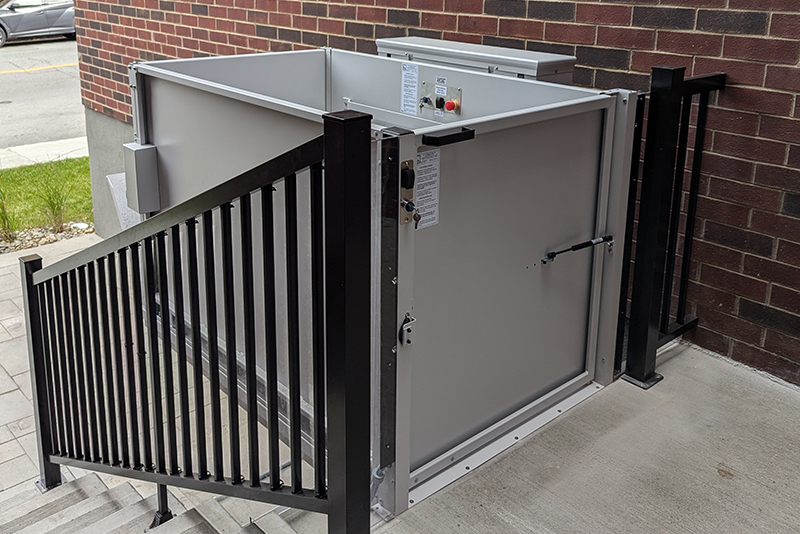

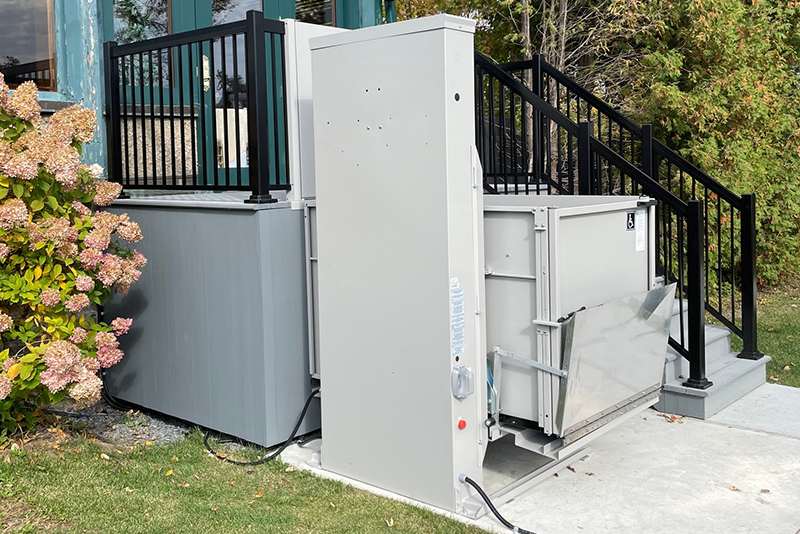

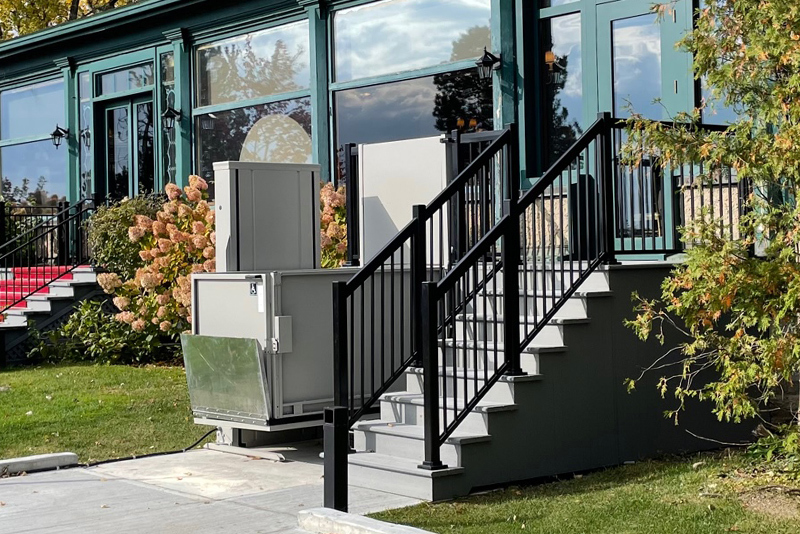

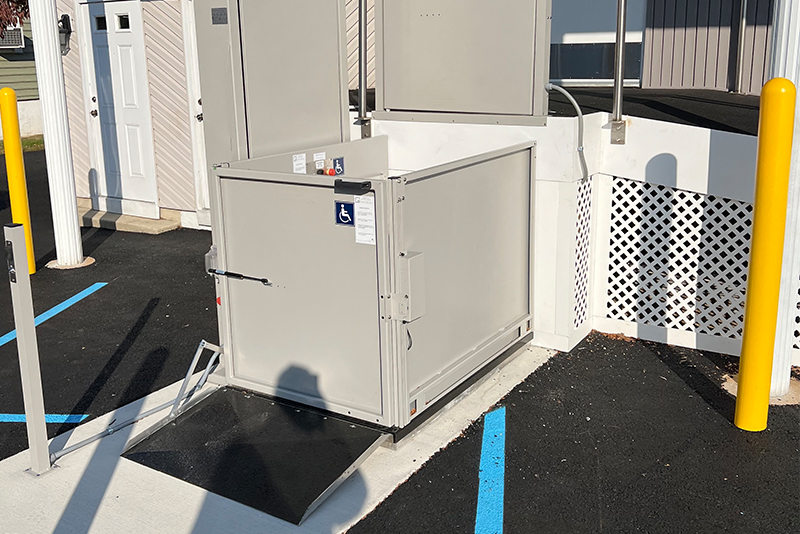

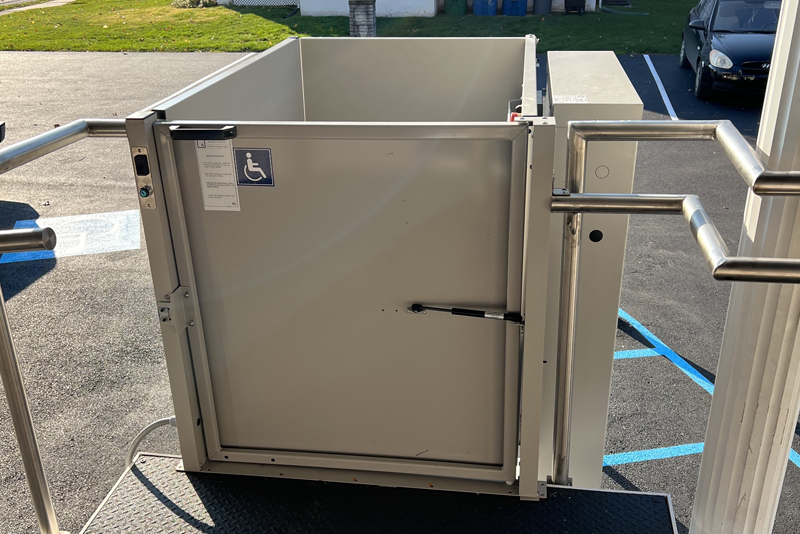

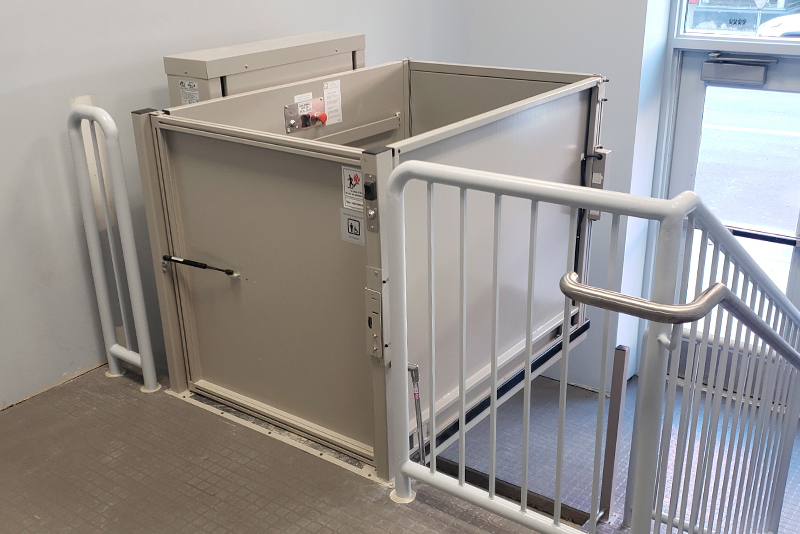

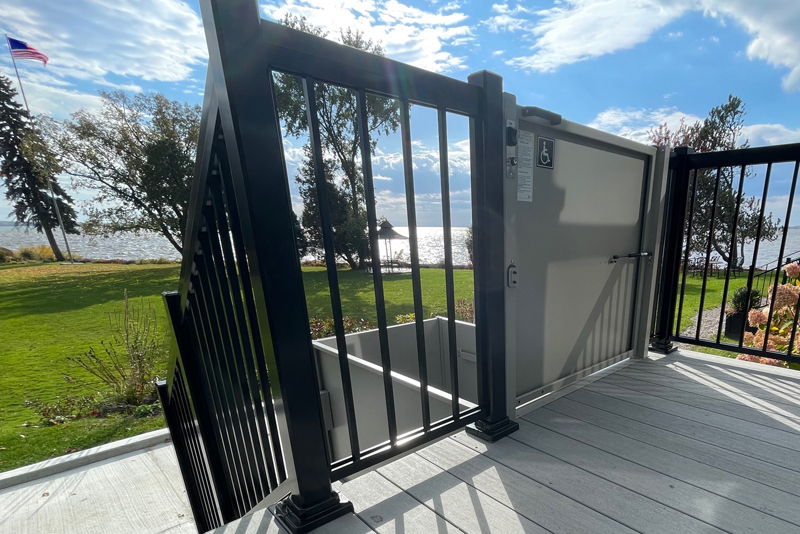

The AmeriGlide Hercules 750 Commercial Vertical Lift is the ideal turnkey vertical platform lift for outdoor or indoor commercial applications which includes Platform and Upper Landing Gates and Call/Send for both levels. Perfect for businesses, municipal buildings, colleges, churches, theaters, and more. The non-skid epoxy coated floor and galvanized steel panel is weather resistant, even in the harshest conditions.
A 750 pound weight capacity is standard on the Hercules. Great for lifting large wheelchairs and two people at one time.

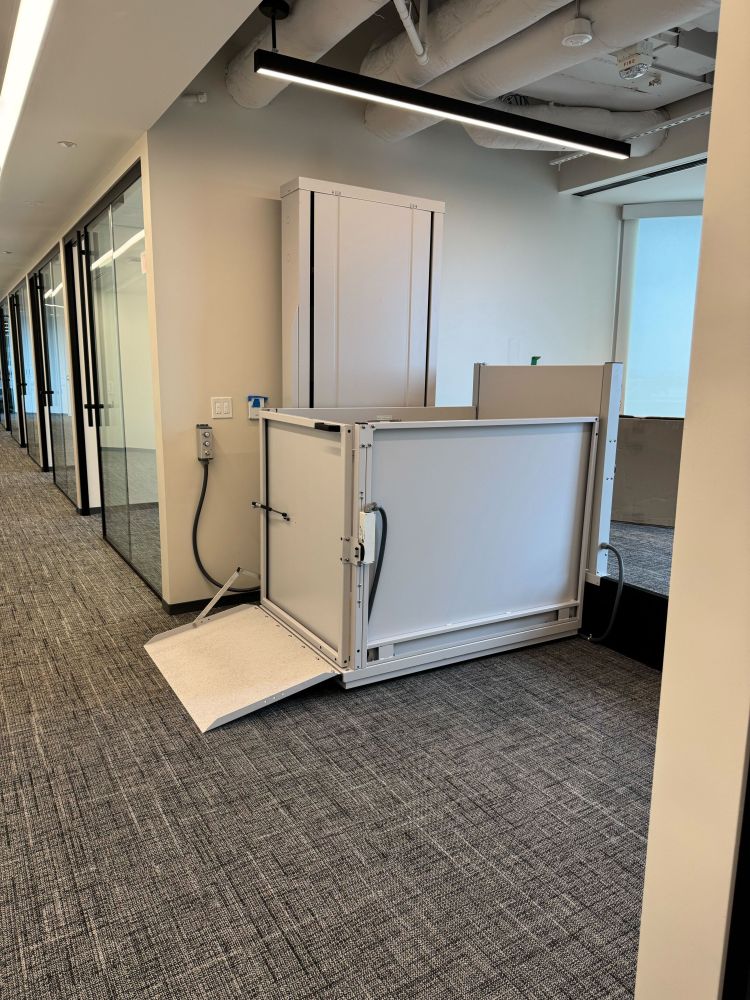

The acme screw direct drive makes the Hercules the smoothest and quietest lift on the market. Being battery powered, the lift and its automatic self-lowering folding ramp (standard) will even work during a power outage.
Safety features include under platform obstruction detection, emergency stop switch, anti-skid floor surface, emergency alarm, and much more.
To learn more about the Hercules 750 Commercial Vertical Lift, call and speak with our experienced VPL experts today.
If you need a fully enclosed Vertical Lift, see our AmeriGlide Hercules 750 Commercial Enclosed Vertical Platform Lift.
| Lifting Capacity | 750 lb |
| Standard Lift Height | 64" |
| Maximum Lift Height | 64" |
| Lift Speed (FPM) | 12 |
| Maximum Stops | 2 |
| Arrives Assembled | No |
| Drive System | Direct Drive ACME Screw |
| Battery Powered Option | Yes |
| Constant Pressure Platform Control | Yes |
| Alarm Button | Included |
| Platform Type | Non-skid (Epoxy crushed and recycled tires) |
| Platform Size | 36"W x 54"L |
| Optional Platform Sizes | n/a |
| Platform Configuration | Straight-Thru Access |
| Optional Platform Configurations | n/a |
| Grab Rail | Included |
| Portable | No |
Options Available for the AmeriGlide Hercules 750 - Commercial - Quick Ship
- Commercial Quick Ship Hercules 750 Includes
Platform Gate (hinged on same side as tower) $0.00
Upper Landing Gate, Includes Integrated Call/Send (hinge side selected below) $0.00
Interlock for Platform and Upper Gates $0.00
2252 Keys $0.00
Rocker Switch $0.00
Manually Resettable Audible Platform Alarm $0.00
Pit Switch $0.00
Grab Bar $0.00
Platform Lights $0.00
Main Disconnect $0.00
AC Power Cord and Interlock Wiring Kit $0.00
- Power Source
DC 24V Battery Operated $0.00
AC 120V $0.00
- Number of Stops
Two Stop $0.00
- Lifting Height
64" Maximum Lift Height (tower 92") $0.00
- Color of Unit
Atlas Gray (standard) $0.00
- Platform / Tower Configuration

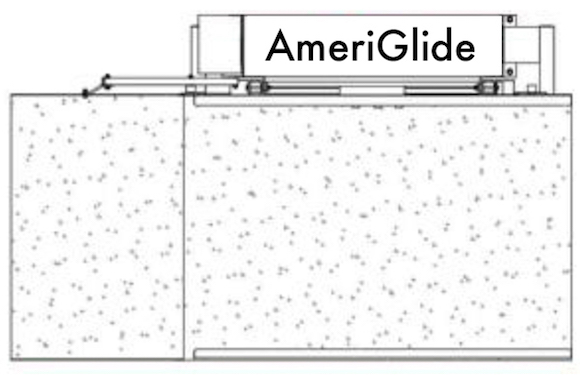

Straight Thru Left Hand $0.00

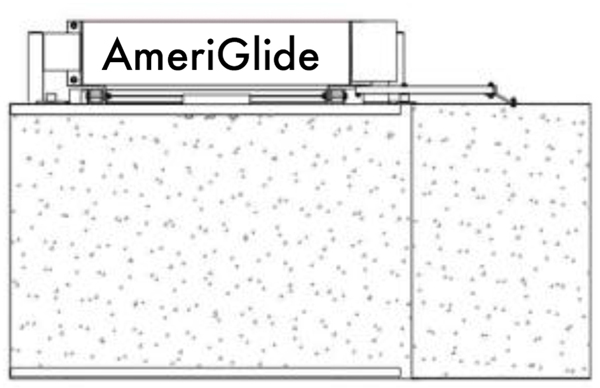

Straight Thru Right Hand $0.00
- Platform Dimensions (Dimensions are All Clear)
36" x 54" $0.00
- Upper Landing Hinge Side (includes Call/Send in Gate Frame)
Open on Left (hinged on right) $0.00
Open on Right (hinged on left) $0.00
- Call/Send (One Included for Lower Landings)

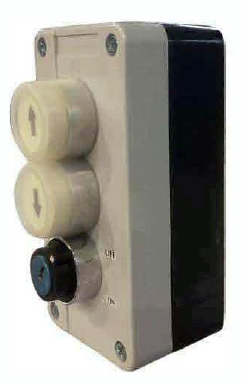

Surface Mount $0.00

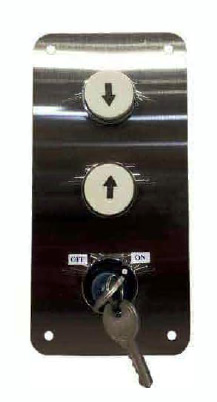

Flush Mount $0.00

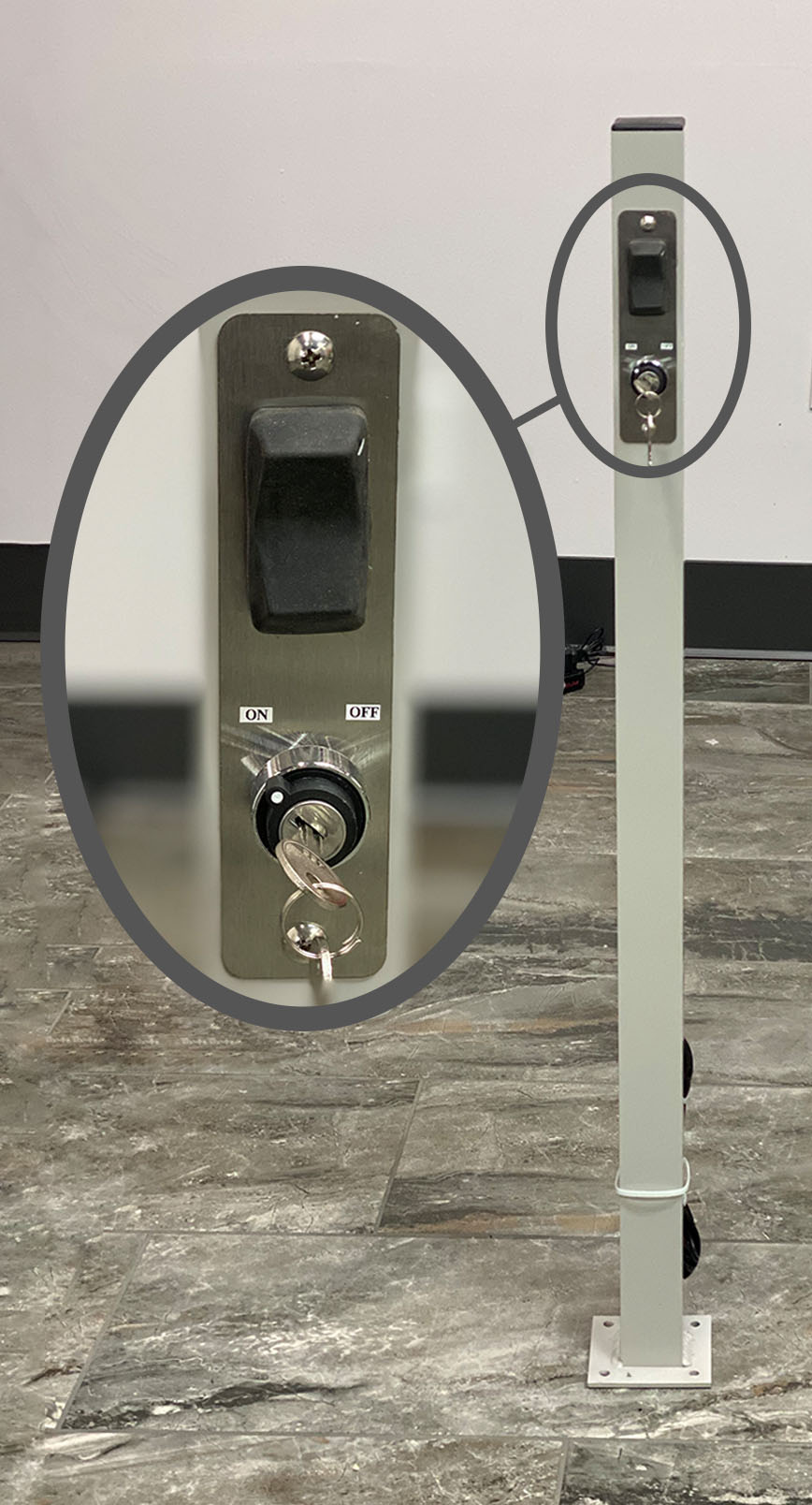

Post Mount $0.00
- Additional Call/Send
Surface Mount $250.00
Flush Mount $250.00
Post Mount $250.00
- Delivery Options
Pick up at Local Freight Terminal $0.00
Raleigh NC Warehouse Pickup $599.00
Site Shipping - Customer Provided Fork Lift OR Loading Dock on Site $0.00
Site Shipping - Liftgate Delivery $199.00
Site Shipping - Flat Bed Fork Lift $1,495.00
- Delivery Zones (adds to flat shipping charge)
Deliver to: Eastern and East-Central States $0.00
Deliver to New York City 5 Boroughs $299.00
Deliver to: MN, WI, NE, IA, IL, KS, MO, AK, OK, LA, TX $300.00
Deliver to: ND, SD, WY, CO, NM $600.00
Deliver to: MT, ID, UT, AZ, NV, CA, WA, OR $900.00
Deliver to: AK, HI, PR (call for price) $0.00
