Overview

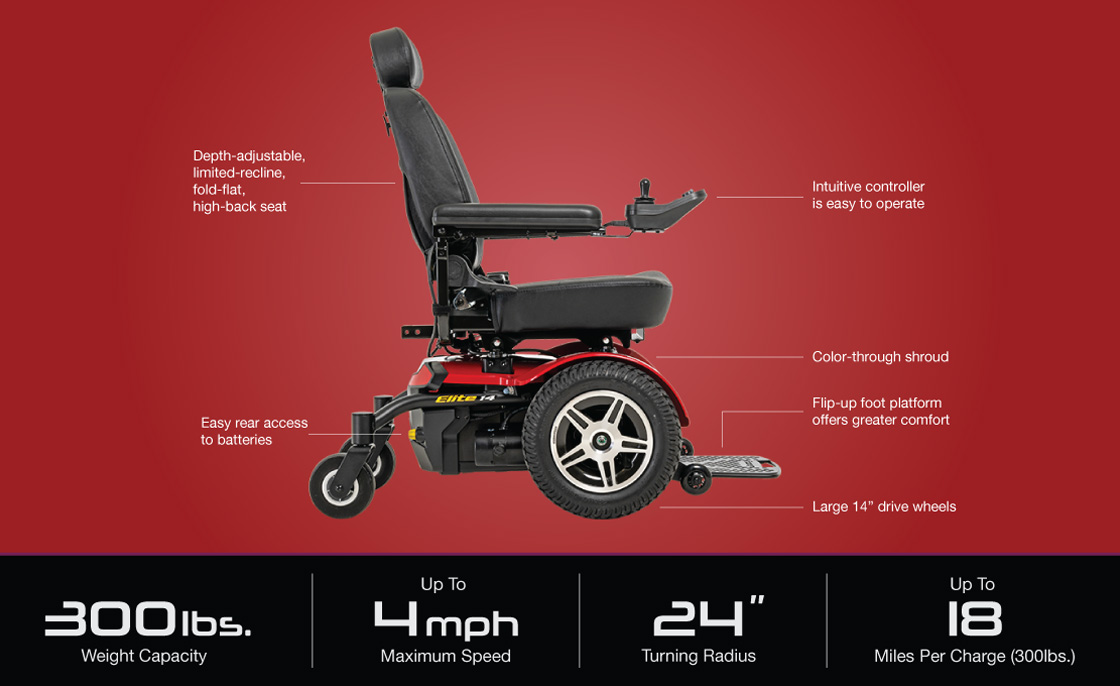

The Jazzy Elite 14
is designed for excellent indoor
maneuverability and outstanding outdoor capability.
Featuring 14" drive wheels for enhanced outdoor
performance combined with a front-wheel drive design
to provide tight turns around corners. Large front
wheels offer extra absorption over obstacles for superb
climbing capabilities along with front anti-tip wheels for
transitioning over grade changes and handling various
terrains with ease.
Documentation
Download our brochures and guides in PDF.
Videos
Product Specifications
| Weight Capacity | 300 lb | | |
| Overall Length | 42.5" | | |
| Overall Width | 24.5" | | |
| Range | 9.8 mi | | |
| Weight, Base | 89 lb | | |
| Turning Radius | 24" | | |
| Ground Clearance | 3" | | |
| Weight, Total | 214.5 lb | | |
| Top Speed | 4 mph | | |
| Weight, Seat | 51.5 lb | | |
| Minimum Seat Height | 15.75" | | |
| Maximum Seat Height | 17.75" | | |
| Weight, Batteries | 74 lb | | |
| Drive Wheels | 14" Foam Filled | | |
| Caster Wheels | 6" Solid | | |
| Charger Type | 5A, off-board | | |
| Controller Type | 50A, Dynamic | | |
| Battery Type | 12 volt, NF-22 | | |
