Overview

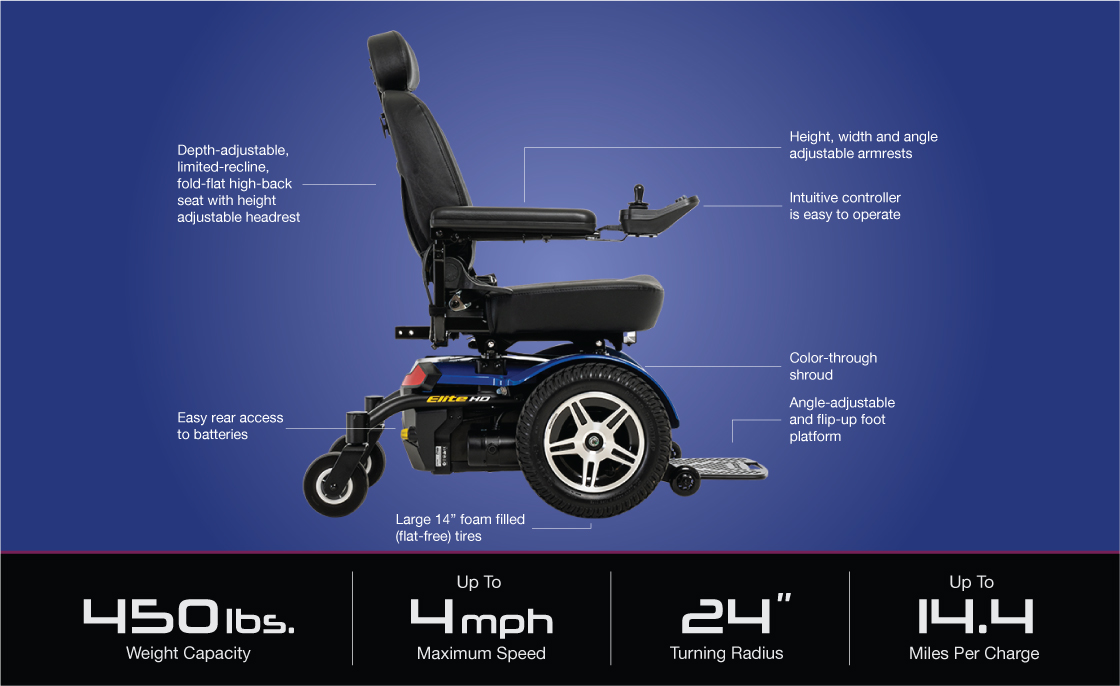

The Jazzy Elite HD
features two-motor, front-wheel
drive technology and heavy-duty construction. The Jazzy
Elite HD features 14" drive wheels for enhanced outdoor
performance combined with a front-wheel drive design to
provide tight turns for optimal indoor maneuverability in
small spaces. Large front wheels add extra absorption for
superb climbing capabilities and combine with front antitip wheels for handling various terrains with ease.
Documentation
Download our brochures and guides in PDF.
Videos
Product Specifications
Weight Capacity | 450 lb | | |
Overall Length | 42.5" | | |
Overall Width | 24.5" | | |
Range | 14.4 mi | | |
Weight, Base | 89 lb | | |
Turning Radius | 24" | | |
Ground Clearance | 3" | | |
Weight, Total | 214.5 lb | | |
Top Speed | 4 mph | | |
Weight, Seat | 51.5 lb | | |
Minimum Seat Height | 20" | | |
Maximum Seat Height | 22" | | |
Weight, Batteries | 74 lb | | |
Drive Wheels | 14" Foam Filled | | |
Caster Wheels | 6" Solid | | |
Charger Type | 5A, off-board | | |
Controller Type | 60A, Dynamic | | |
Battery Type | 12 volt, NF-22 | | |
